DESIGNED TO MEET YOUR NEEDS
The useful, adaptable electric assistance of the T-Tronik makes your daily travel effortlessly easy, so you can focus on all the things that make you smile. It’s time to embrace easy.
DESIGNED TO MEET YOUR NEEDS
The useful, adaptable electric assistance of the T-Tronik makes your daily travel effortlessly easy, so you can focus on all the things that make you smile. It’s time to embrace easy.
Bianchi

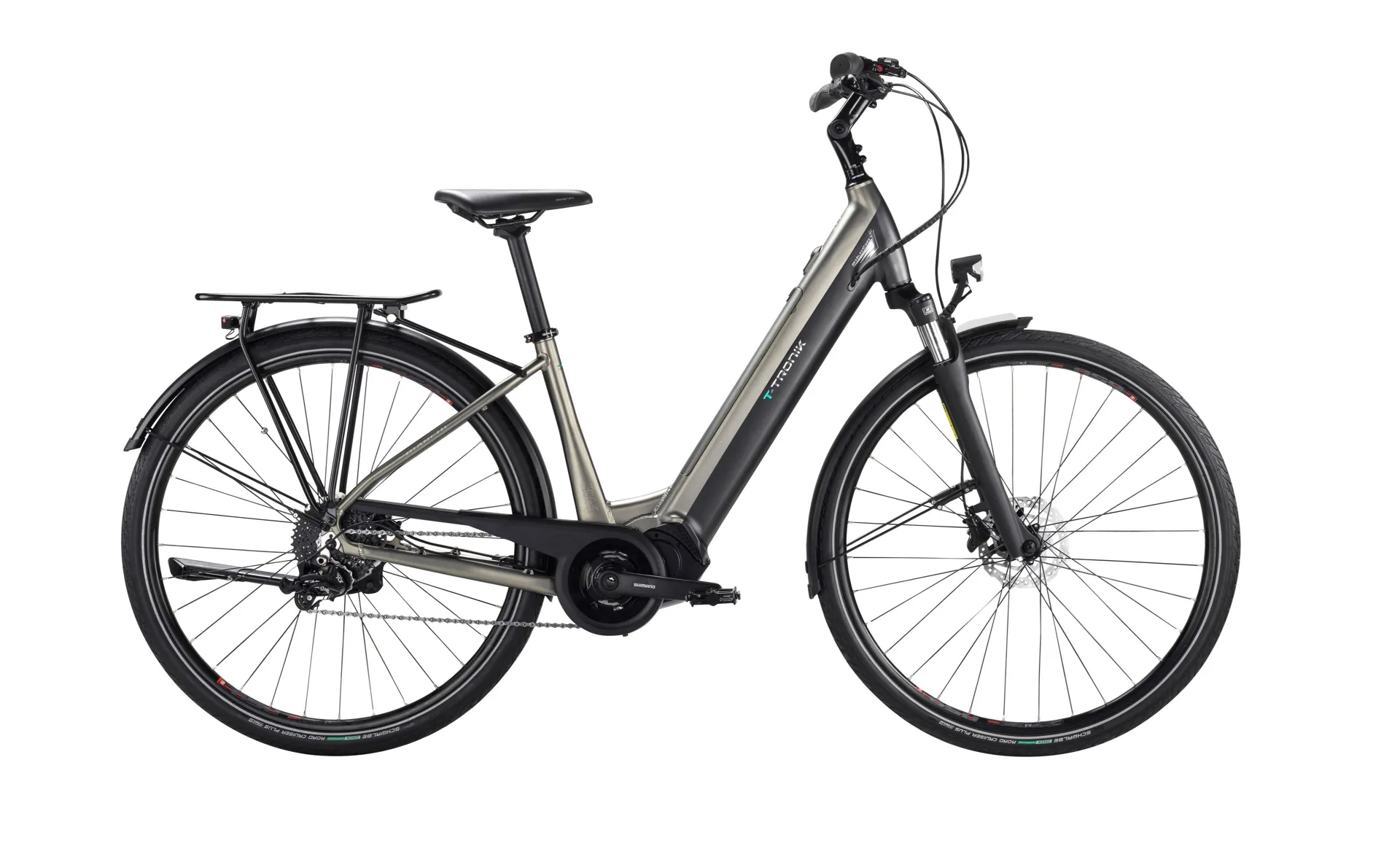

Bianchi T-Tronic C DB X5/X7 9S E6100 Green / Matt Graphite - ex Demo

€2,649.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

SPIN DOCTOR RETURNS POLICY

Obviously, we want you to be happy with every product you purchase from us, whether online or in-store. Please do not remove labels from products or dispose of packaging while you are making up your mind as this may affect your ability to return an item. If you choose to return an item it must reach us in original unused condition with all labels attached and any packaging that may have formed part of the item i.e. boxed goods. At all times your statutory rights are protected.

MAKING A RETURN

In the event that you are not satisfied or have changed your mind, you may return any item or items within 14 days of receipt and, following inspection of the product, we will refund you for the cost of the item minus the outgoing delivery charge (minimum charge €4.50) via the original payment method used. Please note that the cost of the return is not the responsibility of Altitude. We reserve the right not to accept ‘change of mind returns outside of this period. Goods may also be returned in person to our store.

Returns should be posted to Online Returns, The Spin Doctor, Unit 2 Emyvale Enterprise Centre, Emyvale, Co. Monaghan H18 P521

CANCELLATION POLICY

You can cancel or amend any order (or part of an order) placed with us, provided that the order has not yet entered the dispatch process. You will receive a full refund, including postage, via the original method of payment.

If your order, or part of it, has entered the dispatch process, you can refuse to accept the delivery of the item. It will be returned to us as undeliverable where we will refund the amount for the item however, you will still incur costs for the outward postage.

Bianchi T-Tronic C DB X5/X7 9S E6100 Green / Matt Graphite - ex Demo

Brand:Bianchi

Code:YSB1TI

MOTOR
Shimano E6100, 250W, 60Nm

BATTERY
417Wh integrated battery

FRAMESET
FRAME
T-Tronik C-Type ALU sizes: 43, 47 - 9x135 mm quick release dropouts - Post mount 160 disc brake type

FORK
Suntour NEX-E25 DS 700C, 63mm travel, 1-1/8" HT,w/out 9x100 QR , minimum 160mm rotor, maximum 180mm rotor, 30mm stanchions

HEADSET
FSA HST STbk 1-1/8" 44H-N10P

DRIVETRAIN
SHIFTERS
Sram X5, 9sp

REAR DERAILLEUR
Sram X7, 9sp, max. 36T

CRANKSET
Shimano CHAINRING, SM-CRE61, 38T FSA SMN E-Bike Forged Crankset - SMN / 170mm

BOTTOM BRACKET
included in the motor

CHAIN
KMC e9S NPBK

BRAKES
BRAKES
Promax, DSK-925

ROTOR
Promax DSK-925, 160mm, center lock

WHEELS
WHEELS
EBIKE 650 TR 28" - ETRTO 622 x 23C, 32hole, height 18mm

REARHUB
Shimano, FH-TX505-8, 32H 8/9/10/11-SPEED,OLD:135MM,AXLE:146MM,QR:170MM

FRONTHUB
Shimano, HB-TX505,32H OLD:100MM AXLE:108MM, QR:133MM

TIRE
Chaoyang E-Liner City 700x45C, 60tpi

COCKPIT
STEM
Velomann, 28,6 mm steerer ID Clamp, 31,8 mm

HANDLEBAR
Velomann 31.8/680mm, RISE 20MM, SWEEP 15°

GRIPS
Herrmans GRIPset Oxy

SADDLE
SEATPOST
Velomann, lenght 350mm for SM size and 400mm for MD, diam.31,6mm, 0mm seatback

SADDLE
Selle Royal

ACCESSORIES
PEDALS
VP black aluminum, axle 7mm, 113,5x110,5mm

MUDGUARDS
SKS PET Mudguards A60 S /28"

KICKSTAND
Ursus, load 35kg

REARCARRIER
Racktime, 28", Max load 25Kg

FRONTLIGHT
Herrmans Mr GO e-bike 6/12 V

REARLIGHT
Axa Juno e-bike 6/12 V

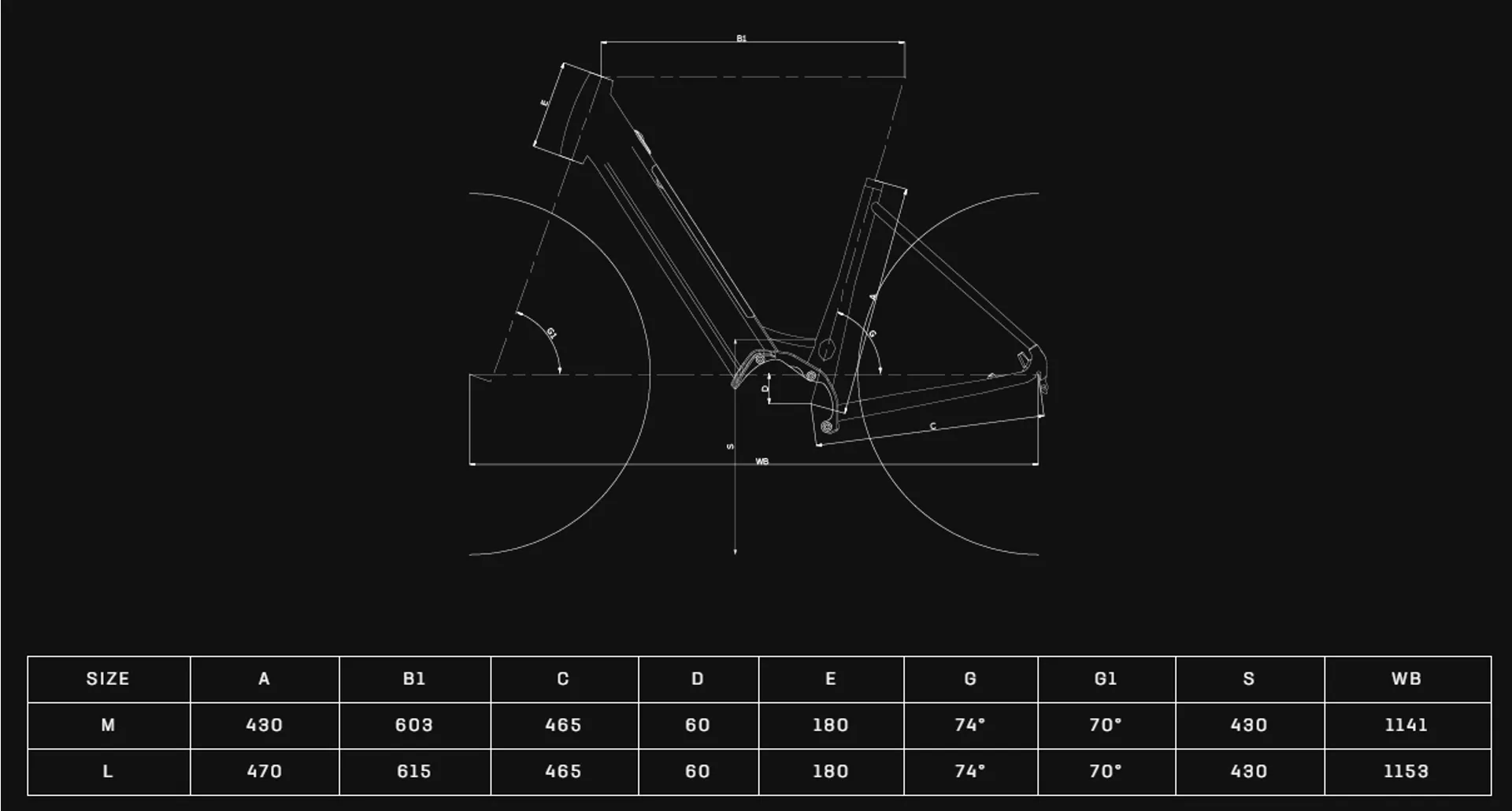

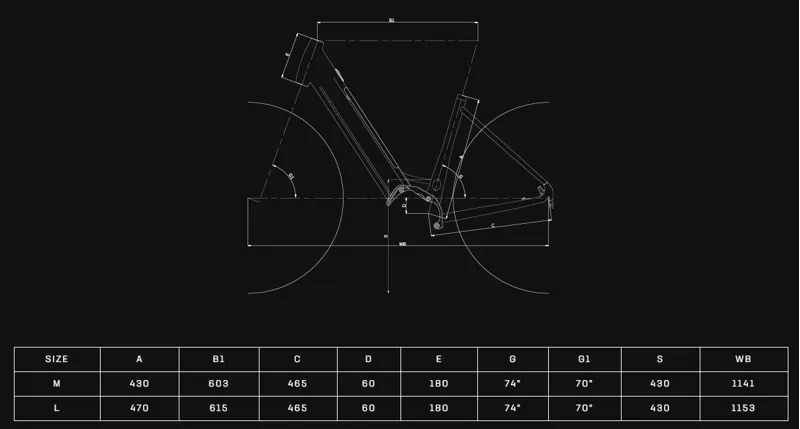

Sizing Information
