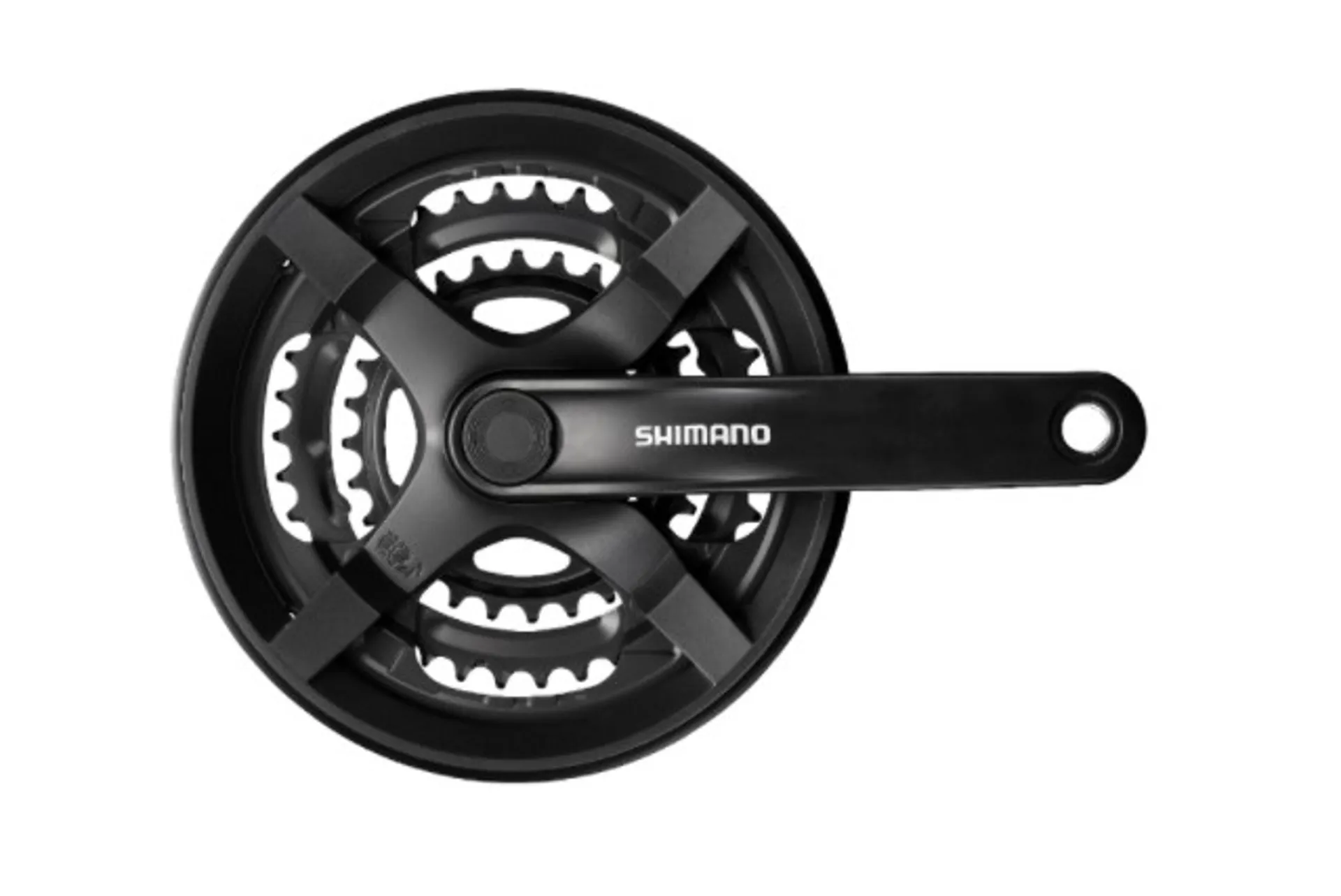

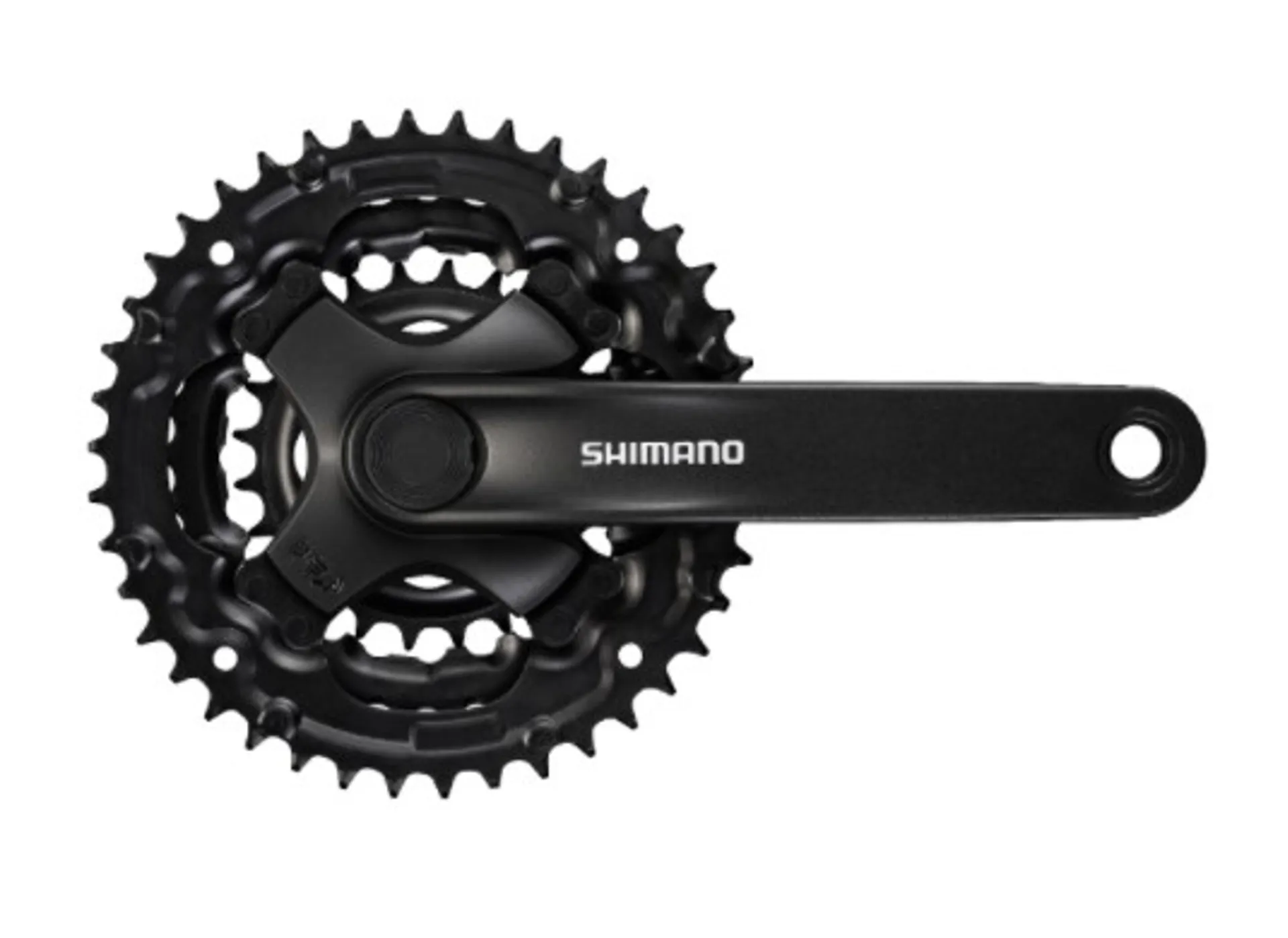

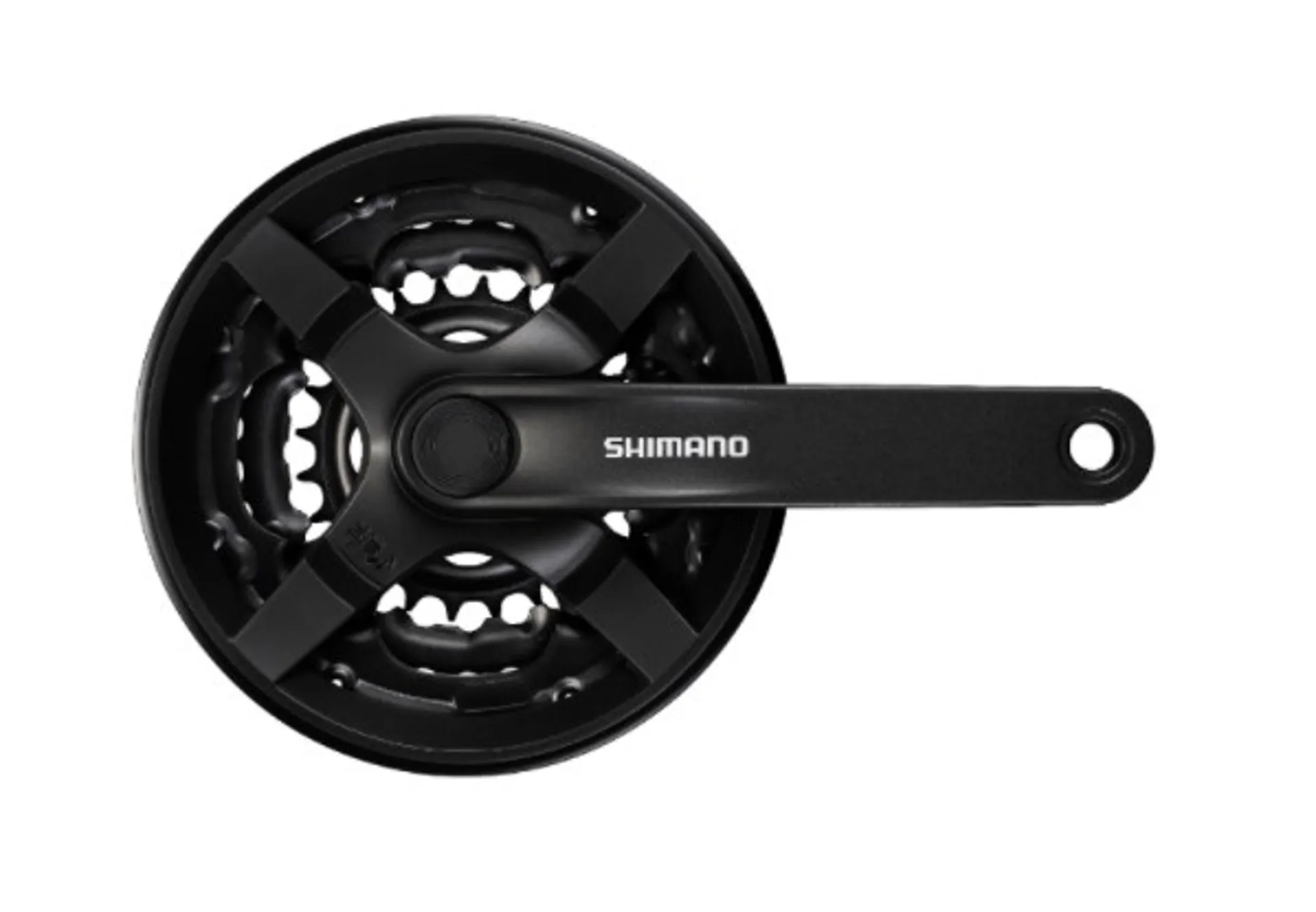

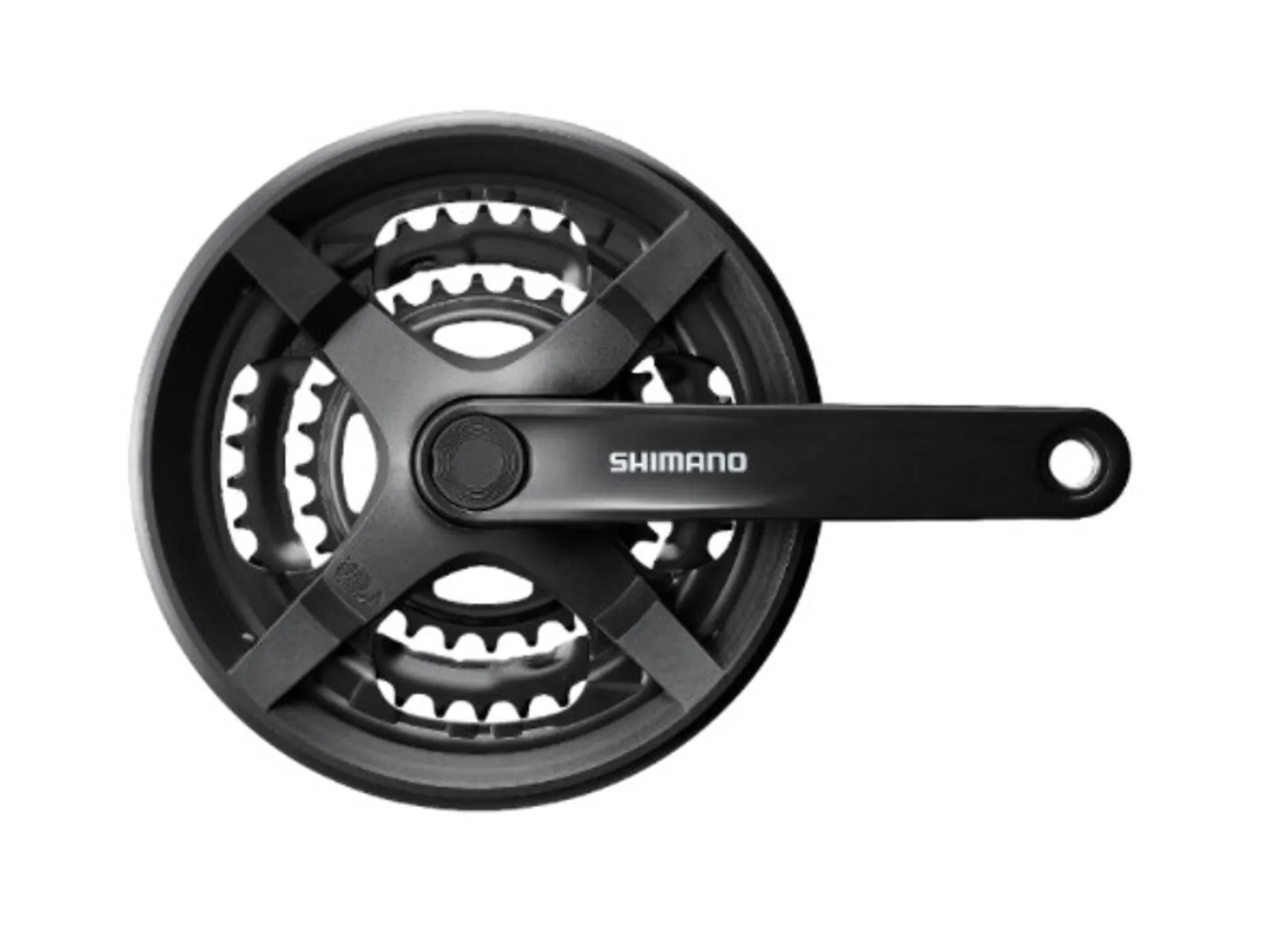

FC-TY301SHIMANO TOURNEY TY - MTB Crankset - 181.5 mm Q-Factor - 3x8/7/6-speedCompatible with a 3x8, 3x7, and 3x6 speed drivetrains, the SHIMANO TOURNEY TY crank delivers reliable, precise DUAL SIS shifting.
- Light and reliable shifting
- Precision indexed shifting
- DUAL SIS
- Versatile performance
- Wide compatibility with multiple components
- Quick and precise assembly
PRODUCT SPECIFICATIONSColor - Black
Remarks - 150 mm spec. available for 42-34-22T (Black) * Bottom bracket Spec for Chain line 50 mm
Axle length of BB-UN/ES (mm)_Threaded (chain case) - D-NL K
Axle length of BB-UN/ES (mm)_Threaded (normal) - D-NL, *D-EL
Chain case compatible - ✔
Chainring combination - 48-38-28T and 42-34-24T
Compatible bottom bracket type_Square - ✔
Crank arm length (mm)_170 - ✔
Crank arm length (mm)_175 - ✔
Spider/Gear arms - 4
Optional chain guard_With chain guard - X (integrated type)
Optional chain guard_Without chain/bash guard - ✔
Recommended bottom bracket_Threaded (chain case) - BB-UN101-K, BB-UN300K
Recommended bottom bracket_Threaded (normal) - BB-UN101, BB-UN300
Threaded bottom bracket shell width (mm)_68 - ✔
Threaded bottom bracket shell width (mm)_73 - ✔
Q-factor (mm) - 181.5
Chain line (mm) - 47.5/47.5 + t/50
Compatible chain - HG/UG for 8/7/6-speed
P.C.D. (mm) - Riveted
Rear speeds - 8/7/6
O.L.D._QR/Nut (mm) - 135
O.L.D._Thru (mm) - 142
